Water-cooled Power RF-Capacitors (External Cooling)
|
Type
|
Capacitance(PF)
|
DC Voltage (KV)
|
Rating Power (KVA)
|
Dissipation
factor
|
Insulation
resistance
|
Dimensions(mm)
|
||||
|
Value
|
Tolerance
|
D1
|
L1
|
L2
|
L3
|
|||||
|
142175
|
1000
|
M
(±20%)
|
12
|
1000
|
tgδ
≤8*10-4
|
R1
≥1*1010Ω
|
142
|
175
|
45
|
30
|
|
095220
|
5000
|
12
|
1000
|
95
|
220
|
110
|
25
|
|||
|
110255
|
1000
|
21
|
1250
|
110
|
255
|
105
|
25
|
|||
|
110255
|
1500
|
21
|
1250
|
110
|
255
|
105
|
25
|
|||
|
110255
|
3000
|
21
|
1250
|
110
|
255
|
105
|
25
|
|||
|
142285
|
4000
|
21
|
1250
|
142
|
285
|
130
|
30
|
|||
|
141314a
|
5000
|
25
|
2000
|
141
|
314
|
135
|
30
|
|||
|
141314b
|
5000
|
25
|
2000
|
141
|
314
|
135
|
30
|
|||
|
142310
|
7500
|
22
|
2000
|
142
|
310
|
135
|
30
|
|||
|
150290
|
5000
|
35
|
2000
|
150
|
290
|
130
|
25
|
|||
|
150310
|
10000
|
20
|
2000
|
150
|
310
|
130
|
25
|
|||
|
F135250
|
5000
|
16
|
2830
|
135
|
250
|
134
|
22
|
|||
|
F135285
|
5000
|
20
|
3000
|
135
|
285
|
134
|
22
|
|||
|
F150310
|
10000
|
20
|
2000
|
150
|
310
|
130
|
25
|
|||

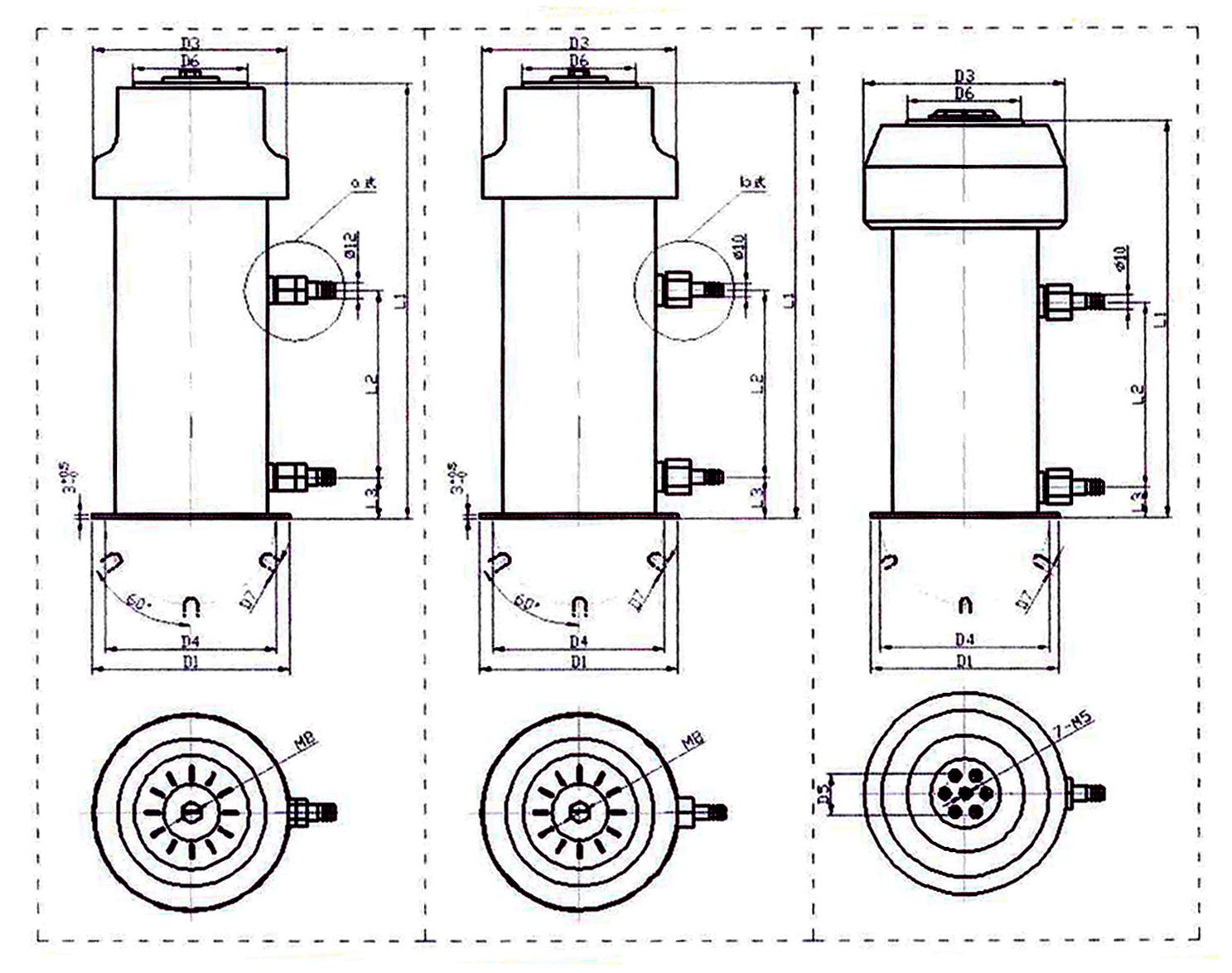

Remark: Specifications with prefix "F"are silica gel insulation capacitance, specifications with suffix "a, b", whose means
of installation has difference, as shown in the chart.
